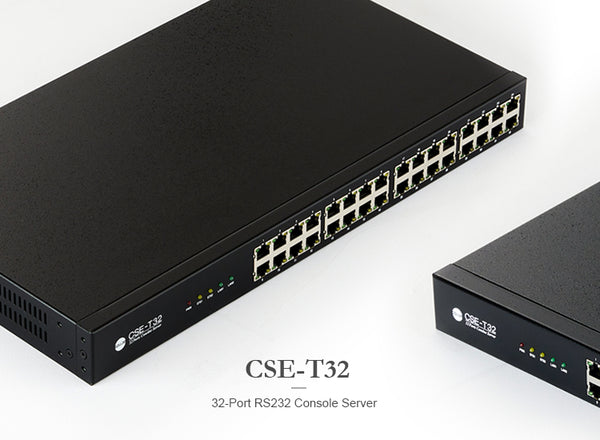

CSE-T32 – 32-Port RS-232 Console Server
CSE-T32 is a high-density 19" rack console server that provides Ethernet connectivity for up to 32 RS-232 console ports. Centralize remote console monitoring for large racks and multi-device environments, with Telnet RFC2217 COM control and optional SSL/TLS security for protected transmission.
Key features
- • High-density console aggregation: up to 32 RS-232 ports in one rack unit.
- • Remote console access via TCP/IP with Telnet COM control (RFC2217) for serial sharing workflows.
- • SSL/TLS and password features help protect console traffic and device access.
- • Communication modes include TCP Server, TCP Client, and UDP for flexible deployments.
- • Separator settings for packet fragmentation to match serial data framing needs.
Built for dense racks & multi-device sites
CSE-T32 is designed for environments where many devices expose RS-232 console ports and must be managed centrally. It helps reduce on-site visits, speeds up troubleshooting, and enables consistent operational workflows across racks and locations.
- • Ideal for data centers, telecom rooms, industrial control cabinets, and test labs.
- • One network endpoint for dozens of console devices simplifies documentation and operations.
Integration options
Fit the console server into your existing network and toolchain with standard TCP/IP communication modes, remote COM workflows, and configuration utilities. Designed for stable operation in real networks, including DHCP environments.
- • Telnet + RFC2217 for serial sharing and remote access workflows.
- • Separator/fragmentation tuning for serial packet boundaries over the network.
Serial Physical Interface
Serial Interface
RxD, TxD, RTS, CTS, DTR, DSR, GND
Connector
Serial Port Properties
Baudrate
Data Bits
Parity
Stop Bit
Network Physical Interface
Ethernet
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense
Software Function
Protocols
TFTP, DHCP, DNS, DDNS, SSL3.0 / TLS1.0
Security
Password for Configuring
Communication Mode
TCP Client (COD)
UDP Mode (U2S)
Operating System
Additional Functions
Indicators (LEDs)
Supplementary Software
ezManager
ezVSP
ezTerm
Dimension
Size
Operating Environment
Input Voltage
Power Consumption
Operating Temperature
Storage Temperature
Certificate
KC
Downloads
- CSE-T32 DataSheet
- CSE-T32 Declaration of RoHS Compliance
- IP Change Notification(DDNS)
- Separator function
- TCP Server/Client mode
- TELNET COM Port Control Option
- Serial cable datasheet
- DB9M-RJ45-D-1M-GRAY
- DB9F-RJ45-X-1M-BLACK
- CSE-T32 Frequently Asked Questions
- [ezManager.zip]ezManager v3.3F: ezTCP management program(for Windows)
- [ezterm.zip]ezTerm v1.4A: Socket program for test
- [ezVSP_60A.zip]ezVSP v6.0A: Virtual COM port driver
Power Supply 5V / 3A
