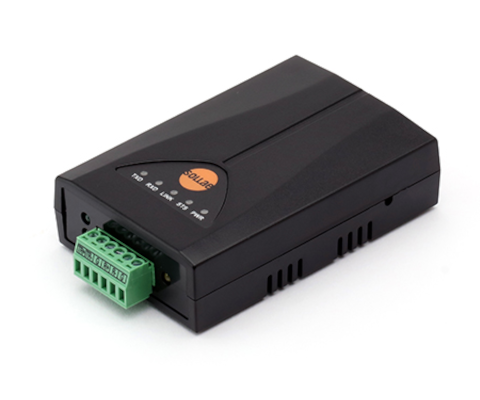

Industrial RS422/RS485 Ethernet Device Server / CSE-H55N2

90.75 EUR
90.75 EUR
VAT included
Brand: Sollae Systems
SKU: 905223
Movement:
90.75 EUR
90.75 EUR

CSE-H55N2 is an industrial RS422/RS485 to Ethernet converter designed to be more stable against noise and electrical damage. It supports IPv6 addressing architecture as well as IPv4 and comes equipped with a terminal block for RS422 and RS485 interface. The basic concept of this converter is quickly and easily adding networking capabilities to your serial equipment to help you remotely control and monitor your serial equipment from anywhere in the world. CSE-H55N2 mainly features industrial operating temperature range (-40? ~ +85?), various communication functions such as DNS, DDNS, and strong security functions (SSL, MAC/IP filtering, etc.).

As well as industrial environments, CSE-H53N is ideal for diverse applications such as Advertisement System(LED Signboard over Internet), Remote Console Monitoring, Control PLC over Internet, etc.

Learn more about serial networking solution  >

Features

  • Industrial temperature range (-40? ~ +85?)
  • Overvoltage, Reverse voltage, Overcurrent protection circuit
  • Hardware design to improve stability against noise and electrical damage
  • IPv4 / IPv6 dual stack
  • SSL (Secure Sockets Layer)
  • Separator settings for packet fragmentation
  • Virtual COM port (ezVSP) provided
  • Serial tunneling

Serial Physical Interface

Serial Interface

RS422/RS-485
Tx+, Tx-, Rx+, Rx-, GND with embedded 3.9K biasing resistors and TVS

Connector

3.5mm Pitch Terminal Block

Serial Port Property

Baudrate

300bps ~ 230,400bps

Data Bits

8bits, 7bits with Parity

Parity

None, Even, Odd, Mark, Space

Stop Bit

1, 1.5, 2

Network Physical Interface

Network Interface

10Base-T/100Base-Tx Ethernet (RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense

Software Functions

Protocols

IPv4/IPv6 dual stack, ICMPv6/TCPv6/UDPv6
TCP, UDP, IP ICMP, ARP, TELNET

DHCP, PPPoE, DNS, DDNS

Security

SSL (Secure Socket Layer)
IP & MAC filtering - Restrict host or network

Password for Configuring

Communication Mode

TCP Server (T2S)
TCP Client (COD)
TCP Server/Client with AT command (ATC)-Patent

UDP Mode (U2S)

Additional Functions

Separator settings for packet fragmentation
TCP Server/Client Mode
Sending MAC address Option

Indicators (LEDs)

Power

Red

Status

Yellow

Ethernet Link

Green

Ethernet RxD

Yellow

Ethernet TxD

Green

Serial RxD

Yellow

Serial TxD

Green

Management

ezManager

Configuration and Monitoring Tool through Network and Serial

Telnet

Telnet Login

AT Command

Configuring in ATC Mode - Patent

Supplementary Software

ezManager

Configuration Tool for Windows

ezVSP

Serial to Network Virtual Driver for Windows

ezTerm

Simple TCP/IP Communication Test Tool

Dimension

Size

94mm x 57mm x 24mm

Operating Environment

Input Voltage

DC 5V±0.5V

Protection

Over Current Protection / Reverse Voltage Protection / Surge Protection

Current Consumption

190mA typical

Operating Temperature

-40℃~ +85℃

Storage Temperature

-40℃ ~ +85℃

Certificate

KC

Registration(KN 22, KN 24)

CE

EMC 2014/30/EU, RoHS 2011/65/EU

FCC

FCC Part 15 Subpart B, Class A
