Key features

• • 4 analog input ports for sensor monitoring, with selectable voltage (0–5V) or current (0–20mA) mode.
• • PHPoC scripting lets you filter, scale, convert, and reformat data before transmitting it.
• • Built-in web server for dashboards and device interaction from any browser.
• • WebSocket + TLS support for secure, near real-time monitoring/control.
• • Libraries such as Email, DNS, and MySQL help you build complete IoT workflows faster.

Analog sensing made flexible (0–5V / 0–20mA)

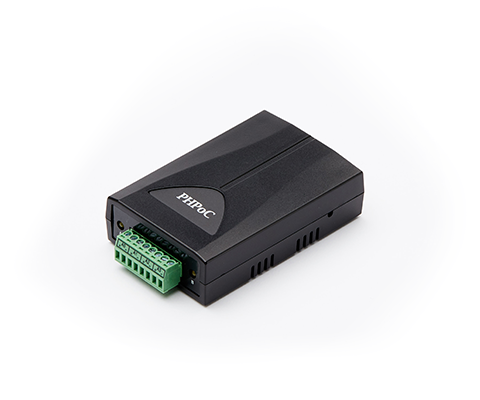

P5H-153 supports both common analog signal types: voltage and current loop. This makes it a strong fit for industrial sensors and transmitters where 0–20mA is preferred, while still supporting straightforward 0–5V sensors.

• • Connect sensors via terminal block wiring and read values through PHPoC (ADC channels).
• • Typical use cases: process monitoring, environmental sensors, and analog measurement reporting.

Browser dashboards with WebSocket + TLS

Host your own user-customized webpage on the device to visualize readings, trigger actions, or expose configuration. WebSocket enables real-time updates, and TLS provides a foundation for secure deployments.

• • Create a simple monitoring page for operators (charts, status tiles, alarms).
• • Build secure, scripted data pipelines (HTTP/HTTPS, MQTT, TCP, Modbus/TCP, etc.) with PHPoC logic.
