P5H-155 / 2-Port Digital Output PHPoC Gateway

332.75 EUR
332.75 EUR
VAT included
Brand: Sollae Systems
SKU: 906252
Movement:

Order 10 items and receive 5% off!

Sollae SystemsP5H-154 / 4-Port Digital Input PHPoC Gateway
P5H-154 / 4-Port Digital Input PHPoC Gateway
P5H-156 / Temperature PHPoC Gateway
Sollae SystemsP5H-156 / Temperature PHPoC Gateway
332.75 EUR
332.75 EUR

P5H-155 – 2-Port Digital Output PHPoC IoT Gateway

P5H-155 is a programmable Ethernet relay gateway designed to remotely control equipment over IP networks. It provides 2 relay output ports (NO/NC wiring options) and a PHPoC interpreter so you can implement custom command handling, safety logic, schedules, and integrations—plus a built-in web server for browser-based control.

2× Relay Outputs
NO / NC wiring
PHPoC Interpreter
Custom control logic
10/100 Ethernet
Remote relay control
Web + Security
WebSocket + TLS

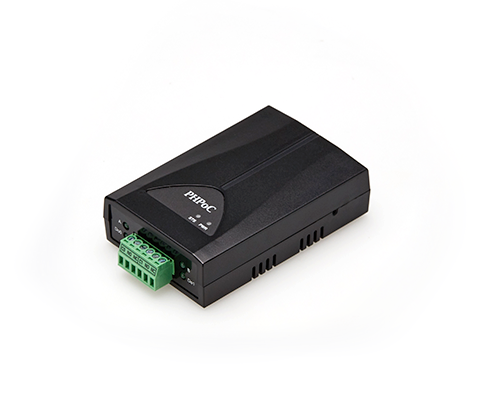

P5H-155

Key features

  • • Two relay output ports for remote ON/OFF control of connected equipment.
  • • NO/NC wiring options let you choose fail-safe behavior and default state.
  • • Programmable with PHPoC for schedules, interlocks, safety rules, and custom command formats.
  • • Built-in web server for browser-based control pages; WebSocket enables responsive UI updates.
  • • TLS support and libraries (Email, DNS, MySQL, etc.) help build complete remote-control workflows.

Relay outputs with NO/NC wiring

Each output provides COM/NO/NC terminals, allowing you to implement either Normal Open (default OFF) or Normal Close (default ON) wiring depending on the application.

  • • Normal Open: connect to COM + NO for default-OFF behavior.
  • • Normal Close: connect to COM + NC for default-ON behavior.
Relay wiring
Web UI

Custom web UI + programmable actions

Build a user-customized webpage for operators (buttons, status, logs), and implement command processing in PHPoC so the gateway can validate requests, apply interlocks, and trigger actions through the relays.

  • • WebSocket enables responsive control panels with near real-time state updates.
  • • Use PHPoC libraries to integrate notifications, database logging, and network protocols.
2 relay channels
Control two independent outputs from your networked systems.
NO / NC wiring
Choose default state and fail-safe behavior to match your application.
Programmable logic
Implement schedules, interlocks, and custom command formats in PHPoC.
Web control panel
Host control pages on the gateway for easy operator access.
WebSocket + TLS
Responsive interfaces and security building blocks for deployment.
USB development
Develop and manage scripts using PHPoC Debugger over USB.

Digital Output

Output Type

Relay (Type C - NO/NC, Max DC 30V/2A with resistive load)

Number of Ports

2 ports

Network Physical Interface

Network Interface

10Base-T/100Base-Tx Ethernet (RJ45)

Software Functions

Protocols

IPv4/IPv6 Dual Stack

Indicators

LED

PWR, RUN, A, B, Do0, Do1

Management

PHPoC Debugger

Configuration and Programming Tool

Security

Password

Processor

Core

Cortex-M4 480MHz

Flash

System - 1M Bytes, User - 1M Bytes

SRAM

1M Bytes

RTC

Capacitor

100uF

Peripherals

Realtime Clock, 4KB Backup SRAM

Dimension

Size

94mm X 57mm X 24mm

Weight

about 68g

Operating Environment

Input Voltage

DC5V±0.5V

Protection

Reverse Voltage Protection / Surge Protection

Current Consumption

typically 328mA

Operating Temperature

-40℃ ~ +85℃

Storage Temperature

-40℃ ~ +85℃

Certificate

KC

Registration (KN 32, KN35)

CE

EMC 2014/30/EU, RoHS 2011/65/EU

FCC

FCC Part 15 Subpart B, Class A
