CIE-H10G / 8-Port Remote I/O Controller

233.53 EUR
233.53 EUR
VAT included
Brand: Sollae Systems
SKU: 905183
Movement:

Order 10 items and receive 5% off!

233.53 EUR
233.53 EUR

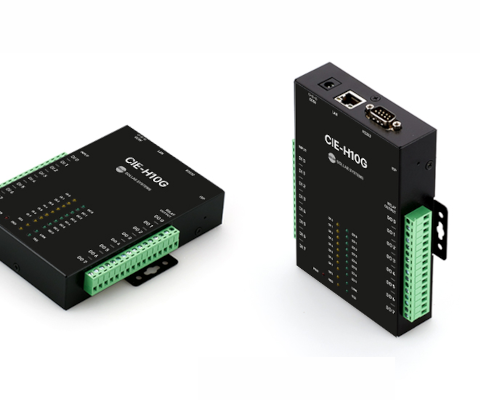

CIE-H10G – 8-Port Remote I/O Controller (Modbus/TCP + Web + RS-232)

CIE-H10G is an Ethernet Remote I/O gateway with 8 digital inputs and 8 relay outputs for monitoring ON/OFF signals and switching loads remotely. It supports Modbus/TCP and an embedded web server (HTTP) for browser-based control, plus Macro logic for autonomous operation. Thanks to the built-in RS-232 port, it can also work as a Serial↔Ethernet converter while serving I/O operations.

8× Digital Inputs
Opto-isolated (WET contact), max 24VDC
8× Relay Outputs
ON/OFF + pulse control
Modbus/TCP + Web
SCADA/HMI/PLC + browser control
RS-232 Included
Serial↔Ethernet conversion modes
CIE-H10G

Key features

  • • 8 opto-isolated digital inputs for monitoring ON/OFF signals from sensors or equipment.
  • • 8 relay outputs for switching loads remotely (supports ON/OFF and timed pulse output).
  • • Remote control/monitoring via Modbus/TCP or any web browser using the embedded web server (HTTP).
  • • Macro mode: simple Boolean logic can automatically drive outputs without a PLC.
  • • “Internet Switch” setups: link multiple controllers so inputs on one device can control outputs on another.
  • • Durable steel case; optional dry-contact adapter available for switch/relay style inputs.

Remote monitoring & control (Modbus/TCP + HTTP)

Integrate CIE-H10G into industrial environments through Modbus/TCP (SCADA, HMI, PLC, software tools) or operate it directly from a browser via HTTP. The device supports multiple simultaneous TCP connections, making it practical for monitoring from several HMI/software clients at the same time.

  • • Works with standard Modbus/TCP clients (and Sollae’s ModMap tool, if you prefer a ready-made app).
  • • Embedded web page allows fast testing/operation from a PC or smartphone browser.
  • • Supports up to 8 TCP connections simultaneously (depending on configuration).
System diagram
Internet Switch

Autonomous logic & Internet Switch concept

CIE-H10G can automatically drive outputs based on input states using Macro logic (Boolean operators). For distributed projects, multiple devices can be combined into an “Internet Switch” system—inputs on one unit can control outputs on another over the network.

  • • Macro mode supports simple AND/OR/NOT logic to automate output actions.
  • • Use as a building block for remote “if-this-then-that” style control across multiple sites/devices.
  • • Custom web page upload allows a tailored web UI for operators (branding / simplified controls).
8 opto-isolated inputs
Reliable ON/OFF monitoring for sensors and equipment status. Optional dry-contact adapter can be used for switch/relay inputs.
8 relay outputs (pulse-capable)
Switch loads remotely via network commands. In addition to ON/OFF, outputs can be triggered as timed pulses.
Modbus/TCP integration
Connect to PLC/SCADA/HMI using a widely adopted industrial protocol. Suitable for structured monitoring and control systems.
Web control (HTTP)
Operate and monitor I/O directly from a browser (PC or smartphone). Default page can be replaced with a custom UI.
Macro logic automation
Run simple Boolean logic locally to drive outputs automatically—useful for stand-alone automation without external controllers.
RS-232 + Internet Switch
Use the RS-232 port for Serial↔Ethernet conversion modes while still operating I/O. Combine multiple units for remote “Internet Switch” projects.

Digital Input Port

Number of Ports

8

Interface

Isolated by Photo-coupler (WET contact)

Electric Parameter

ON - over DC 4.5V, OFF - under DC 1.2V

Maximum Input Voltage

DC 24V

Digital Output Port

Number of Ports

8

Interface

Isolated by Relays(Type A: ON - short, OFF - open)

Relay Capacity

5A (DC 28V, resistive load)

Serial Physical Interface

Serial Interface

1 x RS-232 Port
RxD, TxD, RTS,CTS, DTR, DSR, GND, DCD, RI

± 15KV ESD Protection

Connector

DSUB 9-pin Male

Serial Port Property

Data Rate

300bps ~ 230,400bps

Data Bits

8 bits, 7 bits with parity

Parity

None, Even, Odd, Mark, Space

Stop Bit

1, 2(※ a single idle bit is automatically added to every stop bit by the MCU function)

Flow control

None, RTS/CTS, Xon/Xoff

Ethernet Port

Network Interface

10Base-T/100Base-Tx Ethernet(RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense

Software Functions

Protocols

Modbus/TCP, HTTP, TCP, UDP, IPv4/IPv6 dual stack, ICMPv6/TCPv6/UDPv6
ICMP, ARP, DHCP, PPPoE, DNS, DDNS(Dynamic DNS)

TELNET, TELNET COM Port Control Option (RFC 2217)

Security

IP & MAC filtering - Restrict host or network

Password for Configuring

I/O Control Methods

Modbus/TCP, HTTP, Serialized Modbus/TCP, Macro

Serial-Ethernet Conversion Modes

TCP Server, TCP Client, UDP, ATC

Indicators(LEDs)

System LED

PWR, STS, LINK, RxD, TxD

I/O Port LED

DI x 8, DO x 8

Supplementary Software

ezManager

Configuration tool for Windows

ModMap

Management tool of I/O controllers for Windows

Dimension

Size

153mm x 126mm x 32mm

Weight

Approximately 475g

Operating Environment

Input Voltage

DC 5V

Current Consumption

450mA typical

Operating Temperature

-40℃ ~ +70℃

Storage Temperature

-40℃ ~ +85℃

Certificate

KC

Registration(KN 32, KN 35)

CE

EMC 2014/30/EU, RoHS 2011/65/EU
