16-Port RS232 Console Server / CSE-T16

1 085.37 EUR
1 085.37 EUR
VAT included
Brand: Sollae Systems
SKU: 906236
Movement:
1 085.37 EUR
1 085.37 EUR

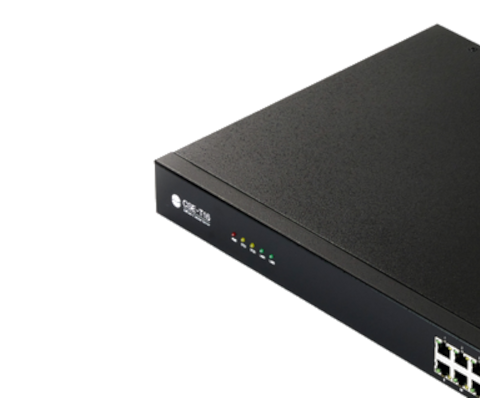

CSE-T16 is a 16-port console server allowing devices with console ports to embed networking capabilities. With CSE-T16, therefore, you can easily monitor the status of console ports over the network from anywhere in the world. It also helps you save your time and energy by improving the efficiency of integrated management and control of many devices in diverse applications. This RS232 console server is an ideal solution for Remote Console Monitoring as it supports useful features such as 16 ports of RS232, a security protocol (SSL) to protect data transmission, sharing serial ports through the network (Telnet with RFC2217), etc.

CSE-T16 can apply in communication environments such as Remote Console Monitoring, etc.

Learn more about console server solution  >


Features
  • 19 inches standard rack type
  • Free smart phone application
  • Security functions (SSL 3.0 / TLS 1.0, Password)
  • Separator settings for packet fragmentation
  • Simple and intuitive configuration tool provided
  • Virtual COM port (ezVSP) provided

    Serial Physical Interface

    Serial Interface

    16 x RS-232 ports
    RxD, TxD, RTS, CTS, DTR, DSR, GND

    Connector

    16 x RJ45 Connector

    Serial Port Properties

    Baudrate

    300bps ~ 115,200bps

    Data Bits

    5, 6, 7, 8bits

    Properties

    None, Even, Odd, Mark, Space

    Stop Bit

    1, 1.5, 2

    Network Physical Interface

    Ethernet

    10Base-T/100Base-Tx Ethernet (RJ45)
    Ethernet Speed Auto Sense
    1:1 or Cross-over Cable Auto Sense

    Software Functions

    Protocols

    TCP, UDP, IP, ICMP, ARP, Ethernet, TELNET

    TFTP, DHCP, DNS, DDNS, SSL3.0/TLS1.0

    Security

    SSL (Secure Socket Layer)

    Password for Configuring

    Communication Mode

    TCP Server (T2S)
    TCP Client (COD)

    UDP Mode (U2S)

    Operating System

    MIC RTOS

    Additional Functions

    Separator settings for packet fragmentation

    Indicators (LEDs)

    PWR, STS1, STS2, LAN1, LAN2, Serial

    Supplementary Software

    ezManager

    Configuration Tool for Windows

    ezVSP

    Serial to Network Virtual Driver for Windows

    ezTerm

    Simple TCP/IP Communication Test Tool

    Dimension

    Size

    437mm x 240mm x 44mm

    Operating Environment

    Input Voltage

    AC 85V ~ 264V

    Power Consumption

    7W

    Operating Temperature

    0℃ ~ +60℃

    Storage Temperature

    -20℃ ~ +70℃

    Certificate

    KC

    Registration(KN 22, KN 24)
