CIE-H12G / 1-Port Remote I/O Controller

102.85 EUR
102.85 EUR
VAT included
Brand: Sollae Systems
SKU: 905184
Movement:

Order 10 items and receive 5% off!

102.85 EUR
102.85 EUR

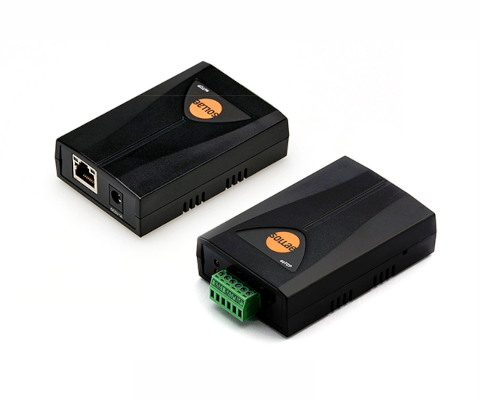

CIE-H12G – Remote I/O Controller (Modbus/TCP + Web)

CIE-H12G is a compact Ethernet Remote I/O controller for monitoring ON/OFF signals and controlling a relay output over the network. It supports Modbus/TCP, HTTP (web control), and Macro mode for simple autonomous logic, making it ideal for remote monitoring, power control, and distributed “Internet Switch” style installations.

2× Digital Inputs
Dry contact + Wet contact (opto-isolated)
1× Relay Output
NO relay, 5A @ 28VDC (resistive)
Ethernet 10/100
RJ45, Auto MDI/MDIX, Auto-sensing
Modbus/TCP + HTTP
Plus Macro mode, IPv4/IPv6 dual stack
CIE-H12G

Key features

  • • Monitor ON/OFF status via two opto-isolated inputs (dry contact + wet contact, up to 24VDC).
  • • Control one NO relay output (ON = short, OFF = open) with up to 5A @ 28VDC resistive load.
  • • Control/monitor via Modbus/TCP or directly from a web browser using the embedded web server.
  • • Macro mode enables simple logic automation locally (Boolean AND/OR/NOT on inputs).
  • • Industrial-friendly: wide operating temperature (-40°C to +85°C) and compact enclosure.

Networking, compatibility & control methods

CIE-H12G fits easily into SCADA / HMI / PLC environments thanks to Modbus/TCP and a standard Ethernet interface. For quick commissioning or simple remote operation, you can also control and monitor I/O through HTTP (web page) without writing software. Security options include IP/MAC filtering and a configuration password.

  • • I/O control methods: Modbus/TCP, HTTP, and Macro mode.
  • • Supports IPv4/IPv6 dual stack and common network services (DHCP, DNS, DDNS, PPPoE, Telnet).
  • • Multiple clients supported (up to 8 TCP connections depending on connection settings).
System diagram
Web control

Key technologies

  • • Embedded web server: access the device from any browser; the web page can be replaced with a custom UI.
  • • Pulse control: the relay output can be switched ON/OFF or driven as a timed pulse (via Modbus/HTTP features).
  • • Macro mode (stand-alone logic): simple Boolean expressions can control the output automatically.
  • • Internet Switch concept: combine multiple controllers so inputs on one device can control outputs on another.

Quick start (default settings)

  • • Default IP address: 10.1.0.1
  • • HTTP port: 80 (open in browser: http://10.1.0.1)
  • • Modbus/TCP port: 502 (typical Slave + Passive connection)
Dry contact input
Non-voltage contact input. ON when short circuit, OFF when open circuit. Opto-isolated for safer signal monitoring.
Wet contact input
Voltage input (opto-isolated). ON over 4.5VDC, OFF under 1.2VDC. Maximum input voltage: 24VDC.
Relay output (NO)
One NO relay output for switching loads remotely. Rated up to 5A @ 28VDC (resistive). Pulse operation supported.
Modbus/TCP integration
Map I/O into PLC/SCADA/HMI using Modbus/TCP. Supports Slave/Master modes and multiple connection options.
Web control (HTTP)
Built-in web server for easy control and monitoring from any PC or smartphone browser. The web page can be customized.
Automation & security
Macro mode enables simple autonomous logic. Security features include IP/MAC filtering and password-protected configuration.

Digital Input Port

DRY Input

Isolated by a photo-coupler

ON - short, OFF - open

WET Input

Isolated by a photo-coupler
ON - over DC 4.5V, OFF - under DC 1.2V
Maximum input voltage - DC 24V

Digital Output Port

Interface

Isolated by Relays(Type A: ON - short, OFF - open)

Relay Capacity

5A (DC 28V, resistive load)

Ethernet Port

Network Interface

10Base-T/100Base-Tx Ethernet(RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense

Software Functions

Protocols

Modbus/TCP, HTTP, TCP, UDP, IPv4/IPv6 dual stack, ICMPv6/TCPv6/UDPv6

ICMP, ARP, DHCP, PPPoE, DNS, DDNS(Dynamic DNS), TELNET

Security

IP & MAC filtering - Restrict host or network

Password for Configuring

I/O Control Methods

Modbus/TCP, HTTP, Macro

Indicators(LEDs)

System LED

STS(RJ45), LINK(RJ45)

I/O Port LED

DI x 2, DO x 1

Supplementary Software

ezManager

Configuration tool for Windows

ModMap

Management tool of I/O controllers for Windows

Dimension

Size

96mm x 57mm x 24mm

Weight

Approximately 68g

Operating Environment

Input Voltage

DC 5V

Current Consumption

160mA typical

Operating Temperature

-40℃ ~ +85℃

Storage Temperature

-40℃ ~ +85℃

Certificate

KC

Registration(KN 32, KN 35)

CE

EMC 2014/30/EU, RoHS 2011/65/EU
