CIE-M10A / 8-Port Remote I/O Networking Module

76.23 EUR
76.23 EUR
VAT included
Brand: Sollae Systems
SKU: 905221
Movement:

Order 10 items and receive 5% off!

76.23 EUR
76.23 EUR

CIE-M10A – 8-Port Remote I/O Networking Module (Modbus/TCP + Web + ADC + Serial Gateway)

CIE-M10A is a compact remote I/O control module with 8 digital inputs, 8 digital outputs, and 1 analog input (10-bit ADC). It lets you monitor and control I/O over Ethernet/Internet using Modbus/TCP (or Serialized Modbus/TCP) and an embedded web interface. A Macro function is also available for simple stand-alone logic control, and the module supports Serial↔TCP/IP conversion for network access to serial devices.

8× Digital Inputs
3.3V CMOS interface
8× Digital Outputs
3.3V CMOS interface
1× Analog Input
10-bit ADC (sensor reading)
Serial↔TCP/IP
UART gateway + Modbus/TCP + Web

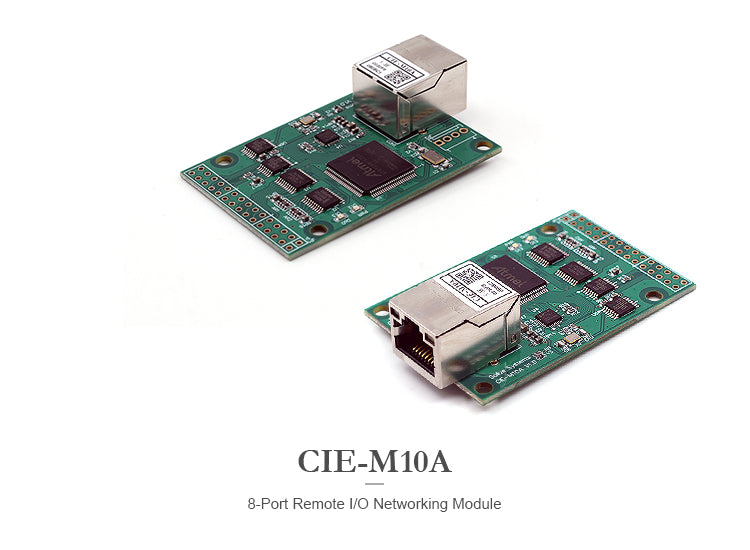

CIE-M10A

Key features

  • • Compact module design for embedding Remote I/O into your own system.
  • • 8 digital input ports and 8 digital output ports (3.3V CMOS interface).
  • • 1 analog input port (10-bit ADC) for reading analog sensors.
  • • Monitoring and control via Modbus/TCP (or Serialized Modbus/TCP) or Web (HTTP).
  • • Macro function for simple autonomous logic control (can operate independently).
  • • User web-page upload function (customize the control screen/UI).
  • • Internet Switch concept support for distributed I/O control.
  • • Free Modbus/TCP program available: ModMap (optional tool).

Remote monitoring & control (Modbus/TCP + HTTP)

CIE-M10A can be controlled from PLC/SCADA/HMI systems using Modbus/TCP (or Serialized Modbus/TCP). For fast access, the embedded web method (HTTP) lets you control outputs and monitor I/O from any browser. The web UI can be changed to suit your application, which is useful for simplified operator screens.

  • • Works with standard Modbus/TCP clients (PC software, mobile apps, HMI, PLC).
  • • Browser control via HTTP for quick testing and simple remote operation.
  • • Custom web-page upload allows a tailored UI for your project.
System diagram
Internet Switch

Autonomous logic & Internet Switch

Macro mode allows automatic output control using a simple logic expression based on input states—ideal for stand-alone rules without a PLC. CIE-M10A is also well suited for “Internet Switch” style applications, where multiple devices can be used to build a distributed I/O control system.

  • • Stand-alone operation with simple logical control (Macro).
  • • Great for distributed ON/OFF control and monitoring across multiple locations/devices.

Analog input (10-bit ADC) for sensor values

In addition to digital I/O, CIE-M10A provides one analog input (10-bit ADC), which is useful for connecting simple analog sensors. Read the measured value through Modbus/TCP and display it on your custom web page if needed.

  • • Ideal for basic voltage-output sensors and simple measurements.
  • • Integrates easily into monitoring dashboards via Modbus/TCP.
Analog input

Serial↔TCP/IP conversion (UART gateway)

CIE-M10A can also bridge serial devices to the network using its UART interface. This helps you manage legacy or embedded serial equipment over TCP/IP without adding a separate serial LAN module.

  • • Typical gateway modes include TCP Server, TCP Client, and UDP.
  • • Useful for combined projects: remote I/O + serial device connectivity in one module.
Serial gateway
Compact module for OEM systems
Embed Remote I/O into your own device to monitor and control equipment over Ethernet/Internet.
8 digital inputs (3.3V CMOS)
Monitor digital states from your application circuitry and expose them over Modbus/TCP or Web.
8 digital outputs (3.3V CMOS)
Drive external circuits (e.g., relay/SSR interface on your board) from Modbus/TCP, Web, or Macro logic.
Analog input (10-bit ADC)
Read one analog channel for simple sensor values and integrate the measurement into monitoring systems.
Modbus/TCP + Web UI
Integrate with PLC/SCADA/HMI via Modbus/TCP or control via HTTP in any browser; upload your own web page for a custom UI.
Macro + Serial gateway + Internet Switch
Use Macro for stand-alone automation, connect serial devices via TCP/IP, and build distributed control with the Internet Switch concept.

Digital Input Port

Number of Ports

8

Interface

3.3V CMOS

Electric Parameter

Min VIL=-0.3V, Max VIL=0.8V
Min VIH=2.0V, Max VIH=5.5V

Digital Output Port

Number of Ports

8

Interface

3.3V CMOS

Relay Capacity

Min VOH=2.9V, Max VOL=0.4V

Analog Input Port

Number

10bit ADC 1 Port

Interface

ADIN, ADVREF

Conversion Time

2.33us

Electric Parameter

Min ADVREF=2.6V, Max ADVREF=3.3V
ADIN's Input Voltage Range = 0V ~ VADVREF

Serial Physical Interface

Serial Interface

1 x UART Port/RxD, TxD, RTS, CTS, GND

Electric Parameter

Min VIL=-0.3V, Max VIL=0.8V
Min VIH=2.0V, Max VIH=5.5V
Min VOH=2.9V, Max VOL=0.4V

Serial Port Property

Baudrate

300bps~230,400bps

Data Bits

5, 6, 7, 8 bits

Parity

None, Even, Odd, Mark, Space

Stop Bits

1, 1.5, 2

Network Physical Interface

Network Interface

10Base-T/100Base-Tx Ethernet(RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense
1000 VAC Isolation

Software Functions

Protocols

TCP, UDP, IP, ICMP, ARP, Ethernet, TELNET

TFTP DHCP, PPPoE, DNS, DDNS, HTTP, Modbus/TCP

Security

IP & MAC filtering - Restrict host or network

Password for Configuring

Digital I/O Port

Modbus/TCP, HTTP(User web page)

Stand alone(by simple equation)

Serial Port

TCP Server(T2S)

TCP Client(COD)

TCP Server/Client with AT command(ATC)-Patent

UDP Mode(U2S)

Additional Functions

Remote Debug Function
TCP Server/Client mode
Sending MAC address Option

Indicators(LEDs)

Power

Red

Digital Output Port 0

Green

Management

ezManager

Configuration and Monitoring Tool through Ethernet

TELNET

TELNET Login

AT Command

Configuring in ATC mode-Patent

Supplementary Software

ezManager

Configuration Tool for Windows

ModMap

Management Tool of I/O controllers for Windows

ezVSP

Serial to Network Virtual Driver for Windows

ezTerm

Simple TCP/IP Communication Test Tool

Dimension

Size

64.4mm x 40mm x 17mm

Operating Environment

Input Voltage

DC 3.3V±0.3V

Current Consumption

78mA @ 3.3V without load

Operating Temperature

-40℃ ~ +85℃

Storage Temperature

-40℃ ~ +85℃
