CSW-H85F / Serial WLAN Device Server

139.15 EUR
139.15 EUR
VAT included
Brand: Sollae Systems
SKU: 906245
Movement:

Order 10 items and receive 5% off!

139.15 EUR
139.15 EUR

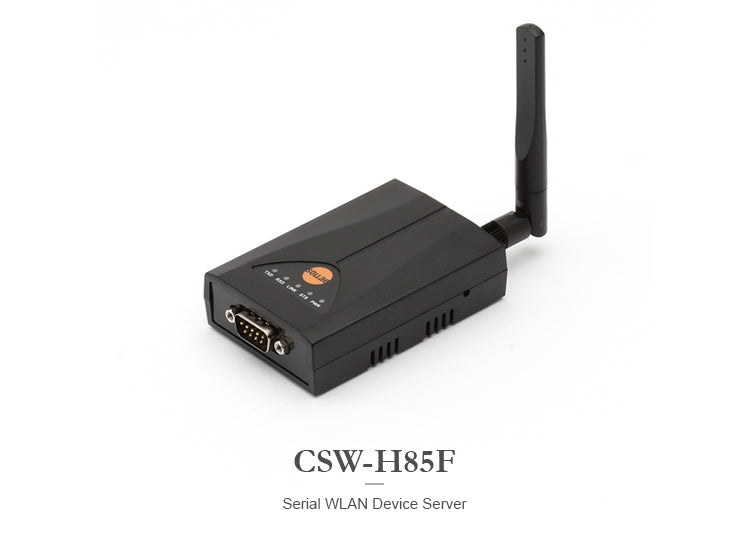

CSW-H85F – Serial WLAN Device Server

CSW-H85F adds wireless networking to industrial serial equipment via RS232/RS422/RS485, enabling remote monitoring and control over WLAN. It includes Wireless RSSI and Soft AP for convenient field setup, supports IPv4/IPv6 for future-ready deployments, and offers WPA-Enterprise for environments that demand maximum security.

Serial Interface
RS232 / RS422 / RS485
Wi-Fi Standard
IEEE 802.11 b/g
RSSI + Soft AP
Easy setup & signal visibility
Security + IP Stack
WPA-Enterprise, IPv4/IPv6
CSW-H85F

Key features

  • • Wireless serial-to-TCP/IP for RS232/RS422/RS485 equipment (remote monitoring & control over WLAN).
  • • Wireless RSSI helps with installation and ongoing link quality checks.
  • • Soft AP simplifies setup and maintenance without needing an existing Wi-Fi AP.
  • • IPv4/IPv6 dual stack supports long-term rollouts and IPv6 migration planning.
  • • WPA-Enterprise provides enterprise-grade wireless encryption and authentication.

WLAN modes built for field work

Use CSW-H85F with typical Wi-Fi deployments (Infrastructure and Ad-hoc) and rely on Soft AP when you need fast access during commissioning or maintenance. For secure environments, WPA-Enterprise helps align with enterprise Wi-Fi policies.

  • • Configure IP/SSID/security settings via the built-in web interface.
  • • RSSI visibility supports better placement decisions and more reliable links.
WLAN modes
Tools

Communication modes, framing & support tools

CSW-H85F supports standard serial-over-IP tunneling modes and provides tools for monitoring connection status. Separator settings help transport framed serial messages more reliably over TCP/UDP.

  • • Supports common tunneling modes (TCP Server, TCP Client, UDP) and AT Command mode for flexible networking.
  • • Monitor status via debugging tools, ezManager, and TELNET.
  • • Virtual COM (ezVSP) for Windows helps legacy applications connect over Wi-Fi seamlessly.
Wireless RSSI mode
Helps validate link quality and improves deployment reliability.
Soft AP access
Commission and service devices quickly using a phone or laptop without an AP.
WPA-Enterprise security
Designed for environments that demand stronger wireless authentication and encryption.
Industrial serial compatibility
Supports RS232/RS422/RS485 to connect many types of industrial serial devices.
IPv4 / IPv6 dual stack
Helps future-proof deployments and supports IPv6 transition efforts.
Separator (packet framing)
Improves delivery of message-based serial traffic over TCP/UDP.

Serial Physical Interface

Serial Interface

RS-232 - RxD, TxD, RTS, CTS, GND
RS422 - Rx+, Rx-, Tx+, Tx-, GND
RS-485 - TRX+, TRX-, GND
±15KV ESD Protection

Serial Port Property

Baudrate

300bps ~ 230,400bps

Data Bits

5, 6, 7, 8 bits

Properties

None, Even, Odd, Mark, Space

Stop Bit

1, 2

Flow Control

RTS/CTS Hardware

Network Physical Interface

Wireless LAN Interface

IEEE802.11b/g Wireless LAN
Supplied with a dipole 2dBi Antenna
Reverse Polarity SMA connector for external antennas

Software Functions

Wireless LAN Mode

Ad-hoc, Infrastructure

Soft AP: WEP, Simple DHCP Server

Protocols

IPv4/IPv6 Dual Stack, ICMPv6/TCPv6/UDPv6
TCP, UDP, IP, ICMP, ARP, TELNET
DHCP, DNS, DDNS

TELNET COM Port Control Option (RFC 2217)

Security

WEP, WPA-PSK, WPA2-PSK
WPA-Enterprise: EAP-TLS, EAP-TTLS, PEAP
IP & MAC Filtering - Restrict Host or Network

Password for Configuring

Communication Mode

TCP Server (T2S)
TCP Client (COD)
TCP Server/Client with AT Command (ATC) - Patent

UDP Mode (U2S)

Additional Functions

Debug Function
Sending MAC address Option
Factory Reset
Wireless RSSI (Received Signal Strength Indication) Mode

Indicators (LEDs)

Power

Red

Status

Yellow, The current status

Wireless LAN Link

Green

Wireless LAN RxD

Yellow

Wireless LAN TxD

Green

Management

ezManager

Configuration and Monitoring through Network and Serial

TELNET

TELNET Login

AT Command

Configuring in ATC Mode - Patent

Supplementary Software

ezManager

Configuration Tool for Windows through Network and serial

ezVSP

Serial to Network Virtual Driver for Windows

ezTerm

Simple TCP/IP Communication Test Tool

Dimension

Size

88.5mm x 57.0mm x 23.0mm (Without an Antenna)

Operating Environments

Input Voltage

DC 5±0.5V

Current Consumption

260mA Typical

Operating Temperature

-10℃ ~ +70℃

Storage Temperature

-40℃ ~ +85℃

Certificate

FCC

FCC Part 15 Subpart C
