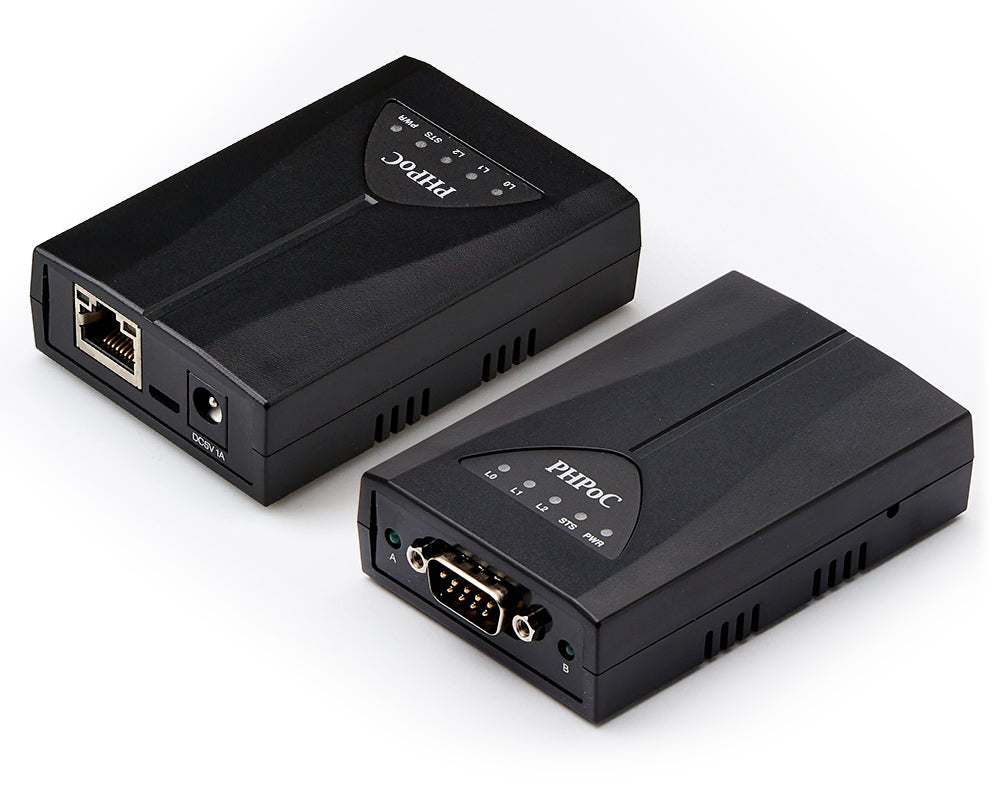

P5H-151 – RS232 PHPoC IoT Gateway
P5H-151 is a programmable IoT gateway that connects RS232 serial devices to Ethernet and lets you build custom edge logic with PHPoC (PHP on Chip). Pre-process, filter, and reformat serial data before sending it to your systems, and control/monitor devices through a built-in web server.
Key features of the P5H-151
- • Programmable gateway with PHPoC interpreter (script your own data handling and integrations).
- • Connect RS232 devices to IP networks and pre-process data before sending it to your systems.
- • Embedded web server for device settings, control and monitoring via browser.
- • Development and configuration through USB using PHPoC Debugger.
Programmable RS232 edge gateway with custom data handling
Use PHPoC scripts to read RS232 data, modify/reformat it (e.g., JSON/CSV/XML), filter noise, add timestamps or device IDs, and then forward it to your backend using the protocol you prefer.
- • Build serial→TCP, serial→HTTP/HTTPS, or serial→MQTT style gateways by scripting the logic.
- • Ideal for “can’t find a converter that fits” situations—make the gateway match your format and workflow.
P5H-151 web interface for monitoring & control
P5H-151 includes a web server that can execute PHPoC scripts and serve a user-customized webpage. Use it to build dashboards, control screens, configuration pages, and real-time monitoring.
- • Browser-based access for remote control and monitoring.
- • WebSocket support enables real-time updates and interaction.
Serial Physical Interface
Serial Interface
RS-232
Connector
9 pin D-sub male
Serial Port Property
Baudrate
1,200 ~ 230,400bps
Data Bits
8 bits, 7 bits with Parity
Parity
None, Even, Odd, Mark, Space
Stop Bit
1, 2
Network Physical Interface
Network Interface
10Base-T/100Base-Tx Ethernet (RJ45)
Software Functions
Protocols
IPv4/IPv6 Dual Stack
Indicators
LED
PWR, STS, L0, L1, L2, A, B
Management
PHPoC Debugger
Configuration and Programming Tool
Security
Password
Processor
Core
Cortex-M4 480MHz
Flash
System - 1M Bytes, User - 1M Bytes
SRAM
1M Bytes
RTC
Capacitor
100uF
Peripherals
Realtime Clock, 4KB Backup SRAM
Dimension
Size
89mm X 57mm X 24mm
Weight
about 68g
Operating Environment
Input Voltage
DC5V±0.5V
Protection
Reverse Voltage Protection / Surge Protection
Current Consumption
typically 273mA
Operating Temperature
-40℃ ~ +85℃
Storage Temperature
-40℃ ~ +85℃
Certificate
KC
Registration (KN 32, KN35)
CE
EMC 2014/30/EU, RoHS 2011/65/EU
FCC
FCC Part 15 Subpart B, Class A
Power Supply 5V / 3A
