SMG-5620 / Industrial RS232/422/485 Modbus Gateway

335.17 EUR
335.17 EUR
VAT included
Brand: Sollae Systems
SKU: 906244
Movement:

Order 10 items and receive 5% off!

Sollae SystemsSMG-5420 / RS422/485 Modbus Gateway
SMG-5420 / RS422/485 Modbus Gateway
P5H-151 / RS232 PHPoC IoT Gateway
Sollae SystemsP5H-151 / RS232 PHPoC IoT Gateway
335.17 EUR
335.17 EUR

SMG-5620 – Industrial Modbus Gateway (RS232/RS422/RS485 ↔ Modbus/TCP)

SMG-5620 is an industrial Modbus Gateway that converts and routes Modbus data between the serial line and Modbus/TCP. It combines a rugged steel enclosure, electrical isolation, and a universal serial interface (selectable RS232/RS422/RS485) to build reliable Modbus bridges in harsh industrial environments.

Universal Serial
RS232 / RS422 / RS485 selectable
Electrical Isolation
2500Vrms (1 minute)
Up to 4 TCP Channels
Multiple clients concurrently
Wide Power Input
DC 8.5–38V (terminal block)

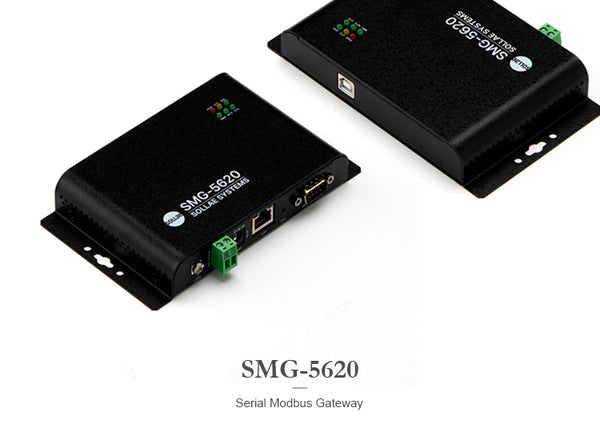

SMG-5620

Key features of the SMG-5620

  • • Industrial Modbus gateway between serial Modbus (RTU/ASCII) and Modbus/TCP.
  • • Selectable RS232/RS422/RS485 “universal” serial port with electrical isolation.
  • • Supports multiple TCP connections (up to 4 channels) and password-based access control.
  • • Bypass mode: forwards raw TCP payload to serial (and back) without converting Modbus ADU—useful for non-Modbus serial protocols.
  • • Rugged build: steel case, over-voltage protection, and frame grounding terminal.

RTU / ASCII conversion + Bypass mode

SMG-5620 supports standard Modbus conversion modes for RTU and ASCII, translating Modbus/TCP ADU to serial Modbus ADU and vice versa. When you need a simple serial tunnel, Bypass mode transfers TCP payload to serial data without Modbus conversion.

  • • Use Modbus/RTU mode for classic RTU field devices connected to Modbus/TCP hosts.
  • • Use Modbus/ASCII mode when your serial side requires ASCII framing.
  • • Use Bypass mode for “serial-over-TCP” style forwarding (non-Modbus serial payloads).
Universal serial interface
One gateway model covers RS232, RS422 and RS485—simplifying standardization across different sites.
Isolation for reliability
Electrical isolation helps reduce ground-loop issues and improves robustness in industrial installations.
Modbus gateway routing
Enables communication between serial-line Modbus masters/slaves and network-side Modbus/TCP devices.
Bypass mode
Forward raw serial payloads over TCP when you need tunneling rather than Modbus conversion.
Industrial power & grounding
Wide DC input on terminal block plus frame grounding support typical industrial cabinet wiring practices.
Configuration with spFinder
Configure and monitor the gateway using the spFinder tool and basic password protection.

Serial Physical Interface

Serial Interface

RS-232 - RxD, TxD, RTS, CTS, GND
RS422 - Rx+, Rx-, Tx+, Tx-, GND with embedded 3.9K biasing resistors

RS-485 - TRX+, TRX-, GND with embedded 3.9K biasing resistors

Connector

9 pin D-sub male

Isolation

Electrically isolated (2500Vrms for 1 minute)

Serial Port Property

Baudrate

1,200bps ~ 230,400bps

Data Bits

8bits, 7bits

Parity

None, Even, Odd, Mark, Space

Stop Bit

1, 2

Network Physical Interface

Network Interface

10Base-T/100Base-Tx Ethernet(RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense

Software Functions

Protocols

IPv4/IPv6 dual stack
TCP, UDP, ICMP, DHCP, mDNS, Modbus/TCP

Modbus/RTU, Modbus/ASCII, SSL/TLS

Security

Password

Indicators

LED

PWR, STS, MTX, MRX, STX, SRX

Management

spFinder

Configuration and Monitoring Tool through Network

Security

Password

Dimension

Size

158mm x 90mm x 24mm

Weight

About 364g

Operating Environment

Input Voltage

Terminal Block: 8.5V ~ 38V

DC JACK: DC 4.5V ~ 5.5V

Current Consumption

Typically, 2W at DC 12V and 1.6W at DC 5V

Operating Temperature

-40℃ ~ +85℃

Storage Temperature

-40℃ ~ +85℃

Certificate

KC

Registration(KN 32, KN 35)

CE

EMC 2014/30/EU, RoHS 2011/65/EU
