SMG-5511 / RS232 Modbus Gateway to Sollae Cloud

243.21 EUR
243.21 EUR
VAT included
Brand: Sollae Systems
SKU: 906290
Movement:

Order 10 items and receive 5% off!

Sollae SystemsSMG-5521 / RS422/RS485 Modbus Gateway to Sollae Cloud

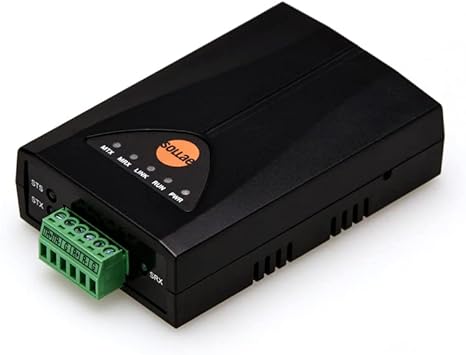

SMG-5521 / RS422/RS485 Modbus Gateway to Sollae Cloud
SIG-5601 / 4-Port I/O Gateway to Sollae Cloud
Sollae SystemsSIG-5601 / 4-Port I/O Gateway to Sollae Cloud
243.21 EUR
243.21 EUR

SMG-5511 – RS232 Modbus Gateway to Sollae Cloud

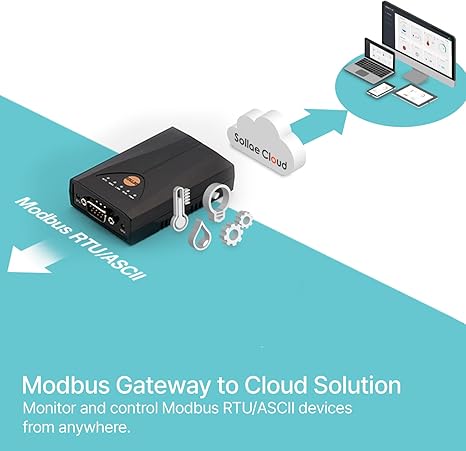

SMG-5511 connects Modbus RTU/ASCII devices over RS232 to Sollae Cloud through Ethernet. In the Sollae Cloud web interface, you can retrieve data, control devices, and build dashboards with widgets and graphs. Cloud features like Event-Action triggers and email notifications help you automate responses and alerts without building your own backend.

RS232 Modbus
Modbus RTU / ASCII devices
Ethernet 10/100
Cloud connection gateway
MQTT over TLS
Encrypted cloud transport
Sollae Cloud
Dashboards + Event-Action + email
SMG-5511

Key features of the SMG-5511

  • • Connect RS232 Modbus RTU/ASCII devices to Sollae Cloud for remote data retrieval and control.
  • • MQTT over TLS for encrypted communication to the cloud.

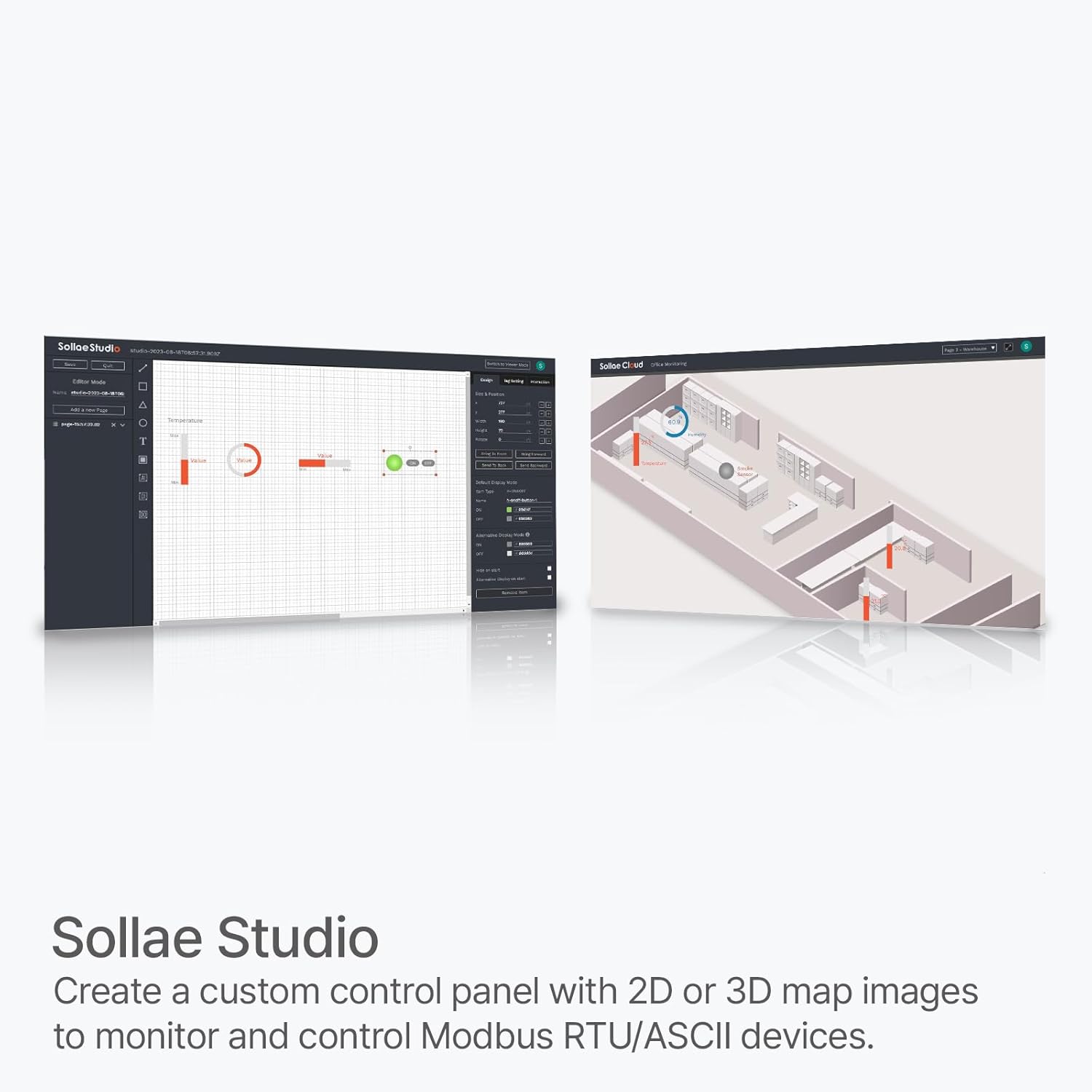

  • • Cloud dashboards with widgets/graphs and customizable UI via Sollae Studio.
  • • Event-Action automation and email notifications.
  • • Data storage on Sollae Cloud (up to 30 days) for trending and reporting.

SMG-5511 cloud dashboards & remote Modbus control

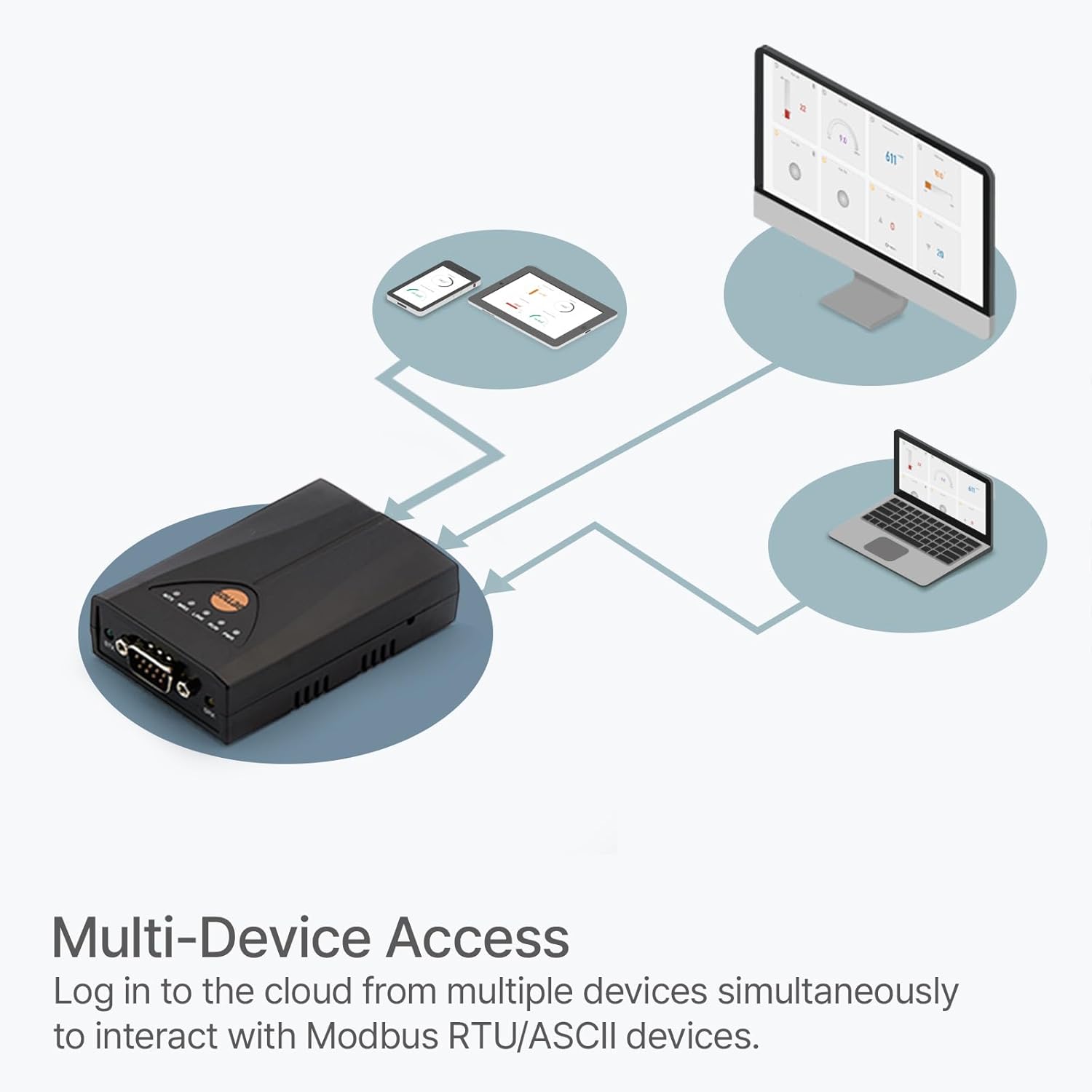

Once connected, you can monitor Modbus values, visualize trends with widgets, and build operator-friendly dashboards. Multiple users can access the same device through the cloud—useful for teams, integrators, and multi-site operations.

  • • Create dashboards for maintenance, process overview, and KPI monitoring.
  • • Review stored history (up to 30 days) for troubleshooting and reporting.

Event-Action automation & secure transport

Use cloud rules to trigger actions based on Modbus values—then notify by email or drive inter-device workflows. Communication to the cloud is encrypted using TLS, and devices support certificate-based authentication.

  • • Alerts and notifications without building your own middleware.
  • • Configure and monitor devices with spFinder (network/USB).
Modbus RTU/ASCII to cloud
Bridge legacy Modbus devices to a modern web/cloud workflow.
RS232 interface
Designed for RS232 Modbus devices and sensors.
MQTT over TLS
Encrypted transport and certificate-based authentication support.

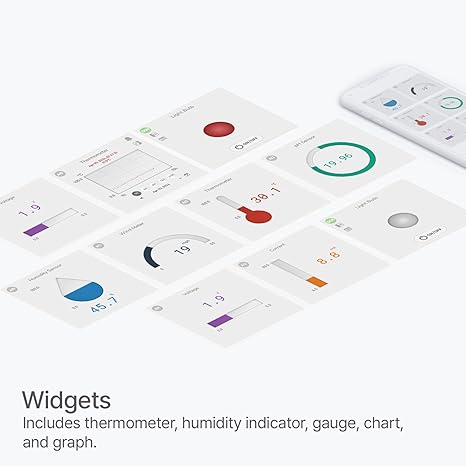

Dashboards & widgets
Visualize values, trends, and build operator-friendly views in Sollae Cloud.

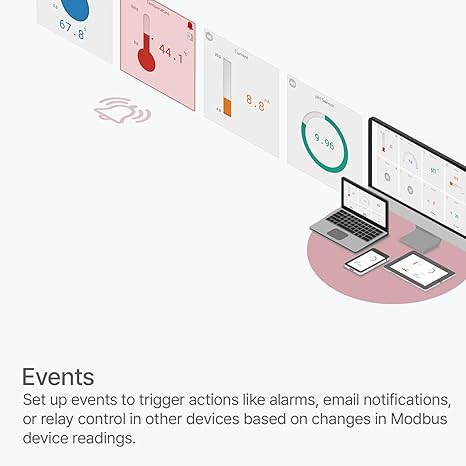

Event-Action automation
Trigger actions and notifications based on Modbus values.
Email notifications
Get alerts when thresholds are reached or events occur.

Serial Physical Interface

Serial Interface

RS-232
RxD, TxD, GND, RTS, CTS

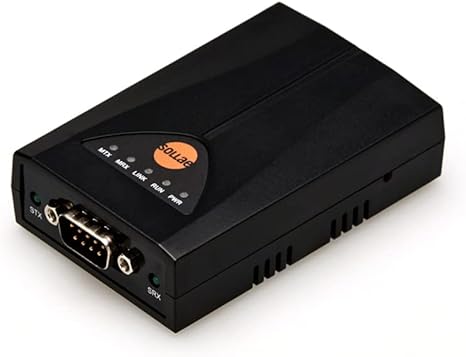

Connector

9 pin D-sub male

Serial Port Property

Baudrate

1,200bps ~ 230,400bps

Data Bits

8bits, 7bits with Parity

Parity

None, Even, Odd, Mark, Space

Stop Bit

1, 2

Network Physical Interface

Network Interface

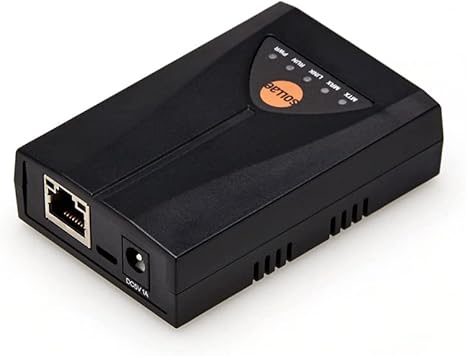

10Base-T/100Base-Tx Ethernet(RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense

Software Functions

Protocols

IPv4/IPv6 dual stack
TCP, ICMP, DHCP, mDNS, MQTT
Modbus/RTU, Modbus/ASCII, SSL/TLS

Indicators(LEDs)

PWR

Red

RUN

Yellow

LINK

Green

MRX

Green

MTX

Green

STX

Green

SRX

Green

Management

spFinder

Configuration and Monitoring Tool through Network

Dimension

Size

89mm x 57mm x 23mm

Operating Environment

Input Voltage

DC 5V±0.5V

Protection

Reverse Voltage Protection / Surge Protection

Current Consumption

145mA typical

Operating Temperature

-40℃ ~ +85℃

Storage Temperature

-40℃ ~ +85℃

Certificate

KC

Registration(KN 32, KN 35)

CE

EMC 2014/30/EU, RoHS 2011/65/EU

FCC

FCC Part 15 Subpart B, Class A
