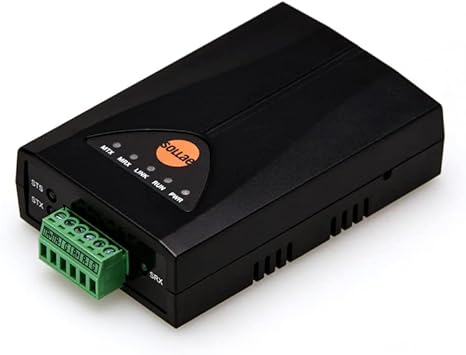

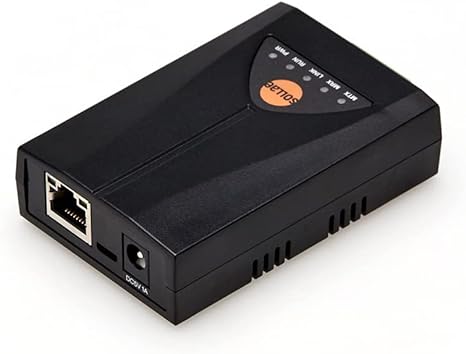

SMG-5521 – RS422/RS485 Modbus Gateway to Sollae Cloud

SMG-5521 connects Modbus RTU/ASCII devices over RS422/RS485 to Sollae Cloud through Ethernet. From the Sollae Cloud web interface you can retrieve data, control devices, and build dashboards with widgets and graphs. Use Event-Action triggers and email notifications to automate responses and alerts—without maintaining your own cloud stack.

RS422 / RS485
Terminal block wiring
Modbus RTU / ASCII
Industrial device integration
MQTT over TLS
Encrypted cloud transport
Sollae Cloud
Dashboards + Event-Action + email
SMG-5521

Key features of the SMG-5521

  • • Connect RS422/RS485 Modbus RTU/ASCII devices to Sollae Cloud for remote data retrieval and control.
  • • Cloud dashboards with widgets/graphs and customizable UI via Sollae Studio.
  • • MQTT over TLS for encrypted cloud transport; supports secure device authentication.
  • • Event-Action triggers and email notifications for automation and alerting.
  • • Data storage on Sollae Cloud (up to 30 days) for trending and troubleshooting.

RS422/RS485 interface for industrial networks

SMG-5521 uses a terminal block interface for RS422/RS485 wiring and is designed for stable operation in industrial environments. This makes it a strong fit for multi-drop networks and longer serial runs commonly found in field devices and sensors.

  • • Ideal for meters, building automation, process sensors and distributed Modbus networks.
  • • Configure and monitor devices with spFinder (network/USB).

Dashboards, widgets & Event-Action logic

Visualize values through cloud widgets and build dashboards for operators and maintenance teams. Use Event-Action rules to trigger automation and send email notifications when thresholds are exceeded or states change.

  • • Multi-user access through the cloud for team operations and integrators.
  • • Stored history (up to 30 days) supports analysis and reporting.
RS422/RS485 gateway
Designed for industrial serial networks and multi-drop topologies.
Modbus RTU/ASCII
Connect and manage standard Modbus serial devices via the cloud.
MQTT over TLS
Encrypted transport to Sollae Cloud with security-focused options.
Cloud dashboards
Widgets and visualizations for fast deployment and operations visibility.
Inter-device Event-Action
Automate actions based on values across devices (cloud-driven rules).
Email notifications
Get alerts when thresholds or event conditions are met.

Serial Physical Interface

Serial Interface

RS422/RS-485
Tx+, Tx-, Rx+, Rx-, GND with embedded 3.9K biasing resistors and TVS

Connector

3.5mm Pitch Terminal Block

Serial Port Property

Baudrate

1,200bps ~ 230,400bps

Data Bits

8bits, 7bits with Parity

Parity

None, Even, Odd, Mark, Space

Stop Bit

1, 2

Network Physical Interface

Network Interface

10Base-T/100Base-Tx Ethernet(RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense

Software Functions

Protocols

IPv4/IPv6 dual stack
TCP, UDP, ICMP, DHCP, Modbus/TCP, mDNS

Modbus/RTU, Modbus/ASCII

Security

Password

Indicators(LEDs)

PWR

Red

RUN

Yellow

LINK

Green

MRX

Green

MTX

Green

STX

Green

SRX

Green

Management

spFinder

Configuration and Monitoring Tool through Network

Dimension

Size

94mm x 57mm x 24mm

Operating Environment

Input Voltage

DC 5V±0.5V

Protection

Reverse Voltage Protection / Surge Protection

Current Consumption

145mA typical

Operating Temperature

-40℃ ~ +85℃

Storage Temperature

-40℃ ~ +85℃

Certificate

KC

Registration(KN 32, KN 35)

CE

EMC 2014/30/EU, RoHS 2011/65/EU

FCC

FCC Part 15 Subpart B, Class A
