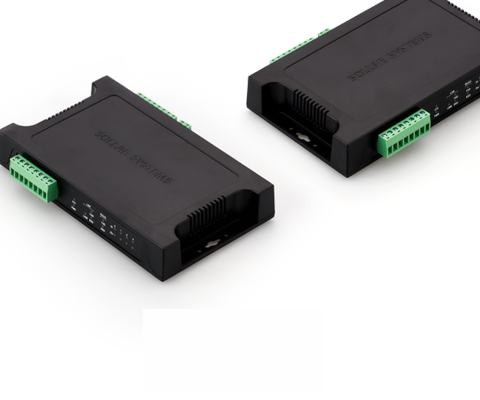

8-Port Remote I/O Controller / CIE-H10G

CIE-H10G is a remote I/O gateway equipped with 8 digital input ports, 8 digital output ports, an RS-232 and an Ethernet interface. Each digital input port is linked to a photocoupler. The input port can monitor the equipment's ON/OFF state (maximum is 24VDC). Each digital output port is linked to a relay. Apart from ON/OFF control, the digital output port can also be controlled to generate a pulse.

CIE-H10G supports Modbus TCP protocol. You can control/monitor equipment/sensors located in remote places from a PC software, mobile app, HMI, or other Modbus TCP devices. You can use our free software/app called ModMap or any software/app that supports Modbus TCP. CIE-H10G is also equipped with an embedded web server with a preloaded web page, so you can use any web browser on a PC/smartphone to access the web page to control/monitor equipment/sensors. The web page is customizable so you can easily change the web UI if needed.

CIE-H10G allows each digital output port to be automatically controlled by a logic formula of digital input and output ports. Especially, CIE-H10G can connect directly to multiple CIE-H12G, CIE-H14G, and/or other CIE-H10G to form an I/O system called Internet Switch. The system allows the output port of a device to be controlled by input ports of other devices, and vice versa, via the Internet. CIE-H10G allows up to eight TCP connections simultaneously, enabling to monitor sensors from different HMI devices/software/apps at the same time. Besides, CIE-H10G can work simultaneously as an RS232 to Ethernet converter while serving I/O operations.

Features

• 8 digital input, 8 digital output ports
• Durable steel case
• Dry contact adapter (optional)
• Monitor & control via Modbus/TCP or Web
• Controlled by simple logic formula operating autonomously
• Web-based control over custom web page
• Can be used as Internet switch
• Free Modbus/TCP program (ModMap)
