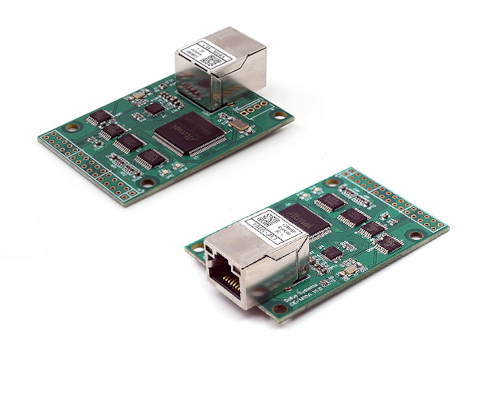

8-Port Remote I/O Networking Module / CIE-M10A

CIE-M10A is a remote I/O control module that supports 8 digital input ports, 8 digital output ports, and 1 analog input port. The module provides the function to monitor and control the input/output port through the Ethernet or Internet by installing it in the user's system. Since the existing contacts can be controlled through the network, I/O equipment can be efficiently managed from anywhere in the remote location. In addition, CIE-M10A provides a serial ? TCP/IP conversion function, so you can easily manage serial devices without additionally applying a separate serial wired LAN module.

The Modbus/TCP (or Serialized Modbus/TCP) protocol is used to control contacts of CIE-M10A, and since the web method is also supported, the output port can be controlled from anywhere through the website. Users can change the control screen to suit their needs. Besides, a Macro function that automatically controls the output port by a simple logic expression according to the input port is also provided.

CIE-M10A can be used in any environment where there are I/O devices that need monitoring and control and is especially suitable for applications such as Internet Switch.
