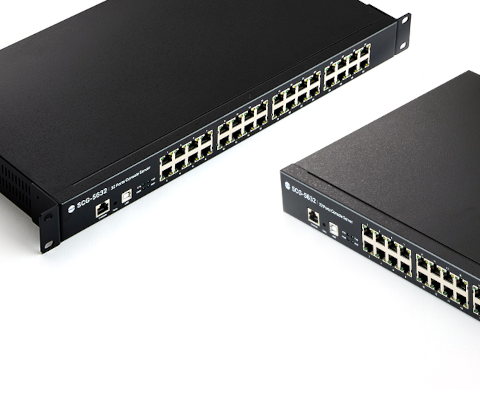

32-Port Console Server / SCG-5632

1 899.70 EUR
1 899.70 EUR
VAT included
Brand: Sollae Systems
SKU: 906288
Movement:
Serial WLAN Device Server / CSW-H85N
Sollae SystemsSerial WLAN Device Server / CSW-H85N
1 899.70 EUR
1 899.70 EUR

The SCG-5632 Console Server is equipped with 32 RS232 ports (RJ45) and an Ethernet port (RJ45) for seamless network management. Ideal for data centers and remote offices, it offers secure, remote access with encryption and user authentication. Simplify configuration and troubleshooting with a user-friendly interface and robust performance. Enhance network resilience with environmental monitoring and power management. Upgrade your network management with SCG-5632, the 32-port Console Server.


SCG-5608 can be applied in communication environments such as Secure Communication, Remote Console Monitoring, etc.

Learn more about Console server solution  >

Features

  • 32 x RS232 port
  • Supports console and GUI configuration
  • Supports COM port scanning function
  • Supports ACL (Access Control List) function
  • Supports batch configuration


Serial Physical Interface
Serial Interface 32 x RS232 ports
RXD, TXD, RTS, CTS, DTR, DSR, GND
Connector 32 x 8-pin RJ45 Connectors

Serial Port Properties
Baudrate 2,400 ~ 115,200 bps
Data Bits 8 bits, 7 bits with parity
Parity None, Even, Odd, Mark, Space
Stop Bit 1, 2
Flow Control None, RTS/CTS

Network Physical Interface
Ethernet 10Base-T/100Base-TX Ethernet (RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense

Software Function
Protocols TCP, IP, TLS, SSH, ICMP, ARP, TELNET, DHCP, mDNS
Security Password for Configuration
Communication Mode TCP Server

Indicators
LED PWR, STS, TXD, RXD

Management
spFinder Configuration Tool for Windows

Dimension
Size 43.7cm x 4.4cm x 22.8cm
Weight About 2.7Kg

Operating Environment
Input Voltage AC 90V ~ 264V
Power Consumption Typically, 22W
Operating Temperature -20℃ ~ +60℃
Storage Temperature -20℃ ~ +60℃
Certificate
KC Registration (KS C 9832, KS C 9835)



Downloads

Since 1998, Sollae Systems has been offering embedded network solutions. We optimized and improved our TCP/IP stack and software to meet customers' diverse needs. As a result, we are now able to carry out the vision to provide perfectly optimized products with PHPoC.
