Serial WLAN Device Server / CSW-H85N

159.72 EUR
159.72 EUR
VAT included
Brand: Sollae Systems
SKU: 905181
Movement:

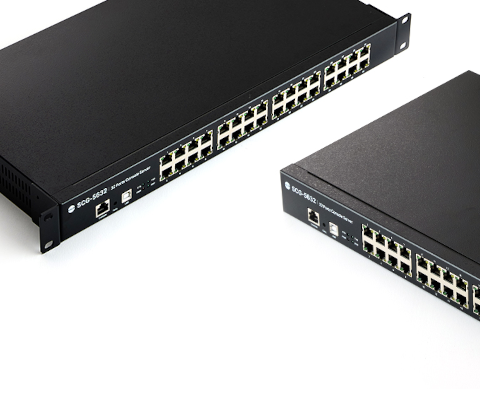

Sollae Systems32-Port Console Server / SCG-5632
32-Port Console Server / SCG-5632
Serial WLAN Device Server / CSW-H85K2
Sollae SystemsSerial WLAN Device Server / CSW-H85K2
159.72 EUR
159.72 EUR

CSW-H85N is a serial to wireless LAN adapter that enables you to add wireless networking capabilities to your industrial equipment via RS232, RS422 and RS485. So by applying this serial to wireless LAN adapter, you can control and monitor your serial devices from anywhere in the world over wireless LAN. CSW-H85N comes preloaded with Soft AP so that it can simply be linked to any devices with wireless LAN by operating as a virtual AP. Thanks to this feature, it makes it easier for you to construct network with mobile devices such as smart phones, tablet PCs and laptops where wireless LAN network is inaccessible. This serial to wireless LAN adapter offers enhanced security protocol, WPA Enterprise for business purpose to ensure high protection and reliability. With infrastructure and Ad-hoc network provided, this serial to wireless LAN adapter can be used for various wireless applications: Internet Signboard, Energy Management, Medical Monitoring

Learn more about serial networking solution  >

Features

  • IEEE 802.11 b/g
  • Soft AP (setting and connection through a smart phone or laptop without an AP available)
  • Setting up main parameters (IP, SSID and security functions related to WLAN) on the Web
  • Multi-Monitoring (maximum 4 channels)
  • SSL (Secure Sockets Layer)
  • IPv4 / IPv6 dual stack
  • WPA Enterprise (EAP-TLS, EAP-TTLS, PEAP)
  • Separator settings for packet fragmentation
  • 2dBi dipole antenna, Reverse Polarity SMA connector for external antennas
  • Serial to wireless LAN adapter with RS232/RS422/RS485 interface
Serial Physical Interface
Serial Interface RS232 - RXD, TXD, RTS, CTS, DTR, DSR, GND
RS422 - RX+, RX-, TX+, TX-, GND
RS485 - TRX+, TRX-, GND
±15KV ESD Protection

Serial Port Property
Baudrate 300bps ~ 230,400bps
Data Bits 8 bits, 7 bits with Parity
Parity None, Even, Odd, Mark, Space
Stop Bit 1, 1.5, 2
Flow Control RTS/CTS (Hardware), Xon/Xoff (Software)

Network Interface
Wireless LAN Interface IEEE802.11b/g Wireless LAN
Supplied with a dipole 2dBi Antenna
Reverse Polarity SMA connector for external antennas

Software Functions
Wireless LAN Mode Ad-Hoc, Infrastructure
Soft AP: WEP, Simple DHCP Server
Protocols IPv4/IPv6 Dual Stack, ICMPv6/TCPv6/UDPv6
TCP, UDP, IP, ICMP, ARP, TELNET
DHCP, DNS, DDNS
TELNET COM Port Control Option (RFC 2217)
Security WEP, WPA-PSK, WPA2-PSK
WPA-Enterprise: EAP-TLS, EAP-TTLS, PEAP
SSL(Secure Socket Layer)
IP & MAC Filtering - Restrict Host or Network
Password for Configuring
Communication Mode TCP Server (T2S)
TCP Client (COD)
TCP Server/Client with AT Command (ATC) - Patent
UDP Mode (U2S)
Additional Functions Debug Function
Multi Monitoring(Maximum 4 TCP connections simultaneously)
TCP Server / Client Mode
Separator settings for packet fragmentation
Firmware upgrade via Network
Sending MAC address Option
Factory Reset

Indicators (LEDs)
Power Red
Status Yellow, The current status
Wireless LAN Link Green
Wireless LAN RXD Yellow
Wireless LAN TXD Green
Serial RXD Yellow
Serial TXD Green

Management
ezManager Configuration and Monitoring through Network and Serial
TELNET TELNET Login
AT Command Configuring in ATC Mode - Patent

Supplementary Software
ezManager Configuration Tool for Windows through Network and serial
ezVSP Serial to Network Virtual Driver for Windows
ezTerm Simple TCP/IP Communication Test Tool

Dimension
Size 88.5mm x 57.0mm x 23.0mm (Without an Antenna)

Operating Environments
Input Voltage DC 5±0.5V
Current Consumption 210mA Typical
Operating Temperature -20℃ ~ +60℃
Storage Temperature -40℃ ~ +60℃

Certificate
KC Certificate(KN 301 489-1, KN 301 489-17, KN 32, KN 35, KS X 3123:2018)
CE RED 2014/53/EU, RoHS 2011/65/EU
FCC FCC Part 15 Subpart C
