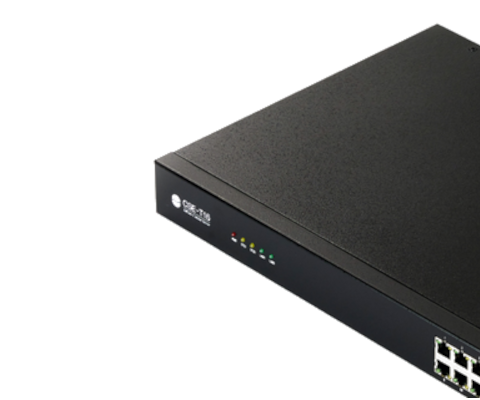

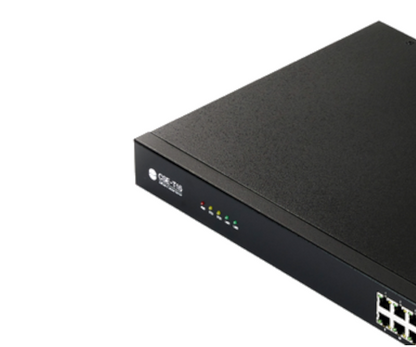

16-Port RS232 Console Server / CSE-T16

1 085.37 EUR
1 085.37 EUR
VAT included
Brand: Sollae Systems
SKU: 906236
Movement:
Sollae Systems32-Port RS232 Console Server / CSE-T32
32-Port RS232 Console Server / CSE-T32

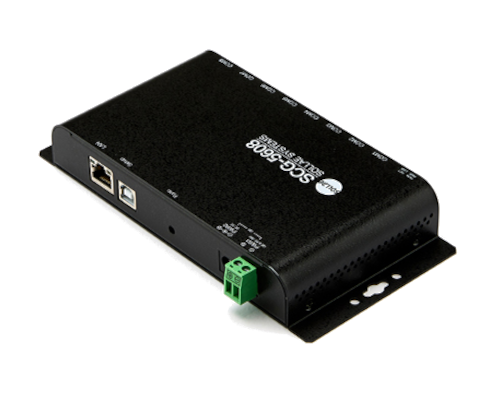

8-Port RS232 Console Server / SCG-5608
Sollae Systems8-Port RS232 Console Server / SCG-5608
1 085.37 EUR
1 085.37 EUR

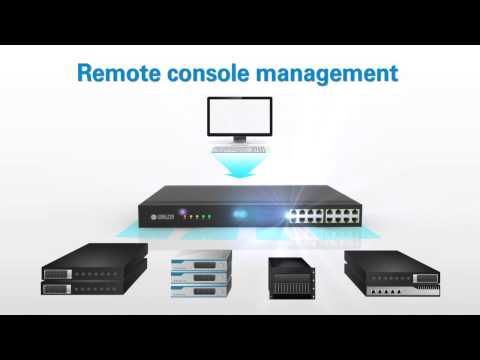

CSE-T16 is a 16-port console server allowing devices with console ports to embed networking capabilities. With CSE-T16, therefore, you can easily monitor the status of console ports over the network from anywhere in the world. It also helps you save your time and energy by improving the efficiency of integrated management and control of many devices in diverse applications. This RS232 console server is an ideal solution for Remote Console Monitoring as it supports useful features such as 16 ports of RS232, a security protocol (SSL) to protect data transmission, sharing serial ports through the network (Telnet with RFC2217), etc.

CSE-T16 can apply in communication environments such as Remote Console Monitoring, etc.

Learn more about console server solution  >


Features
  • 19 inches standard rack type
  • Free smart phone application
  • Security functions (SSL 3.0 / TLS 1.0, Password)
  • Separator settings for packet fragmentation
  • Simple and intuitive configuration tool provided
  • Virtual COM port (ezVSP) provided


    Serial Physical Interface
    Serial Interface 16 x RS232 ports
    RXD, TXD, RTS, CTS, DTR, DSR, GND
    Connector 16 x RJ45 Connector

    Serial Port Properties
    Baudrate 300bps ~ 115,200bps
    Data Bits 5, 6, 7, 8bits
    Properties None, Even, Odd, Mark, Space
    Stop Bit 1, 1.5, 2

    Network Physical Interface
    Ethernet 10Base-T/100Base-TX Ethernet (RJ45)
    Ethernet Speed Auto Sense
    1:1 or Cross-over Cable Auto Sense

    Software Functions
    Protocols TCP, UDP, IP, ICMP, ARP, Ethernet, TELNET
    TFTP, DHCP, DNS, DDNS, SSL3.0/TLS1.0
    Security SSL (Secure Socket Layer)
    Password for Configuring
    Communication Mode TCP Server (T2S)
    TCP Client (COD)
    UDP Mode (U2S)
    Operating System MIC RTOS
    Additional Functions Separator settings for packet fragmentation

    Indicators (LEDs)
    PWR, STS1, STS2, LAN1, LAN2, Serial

    Supplementary Software
    ezManager Configuration Tool for Windows
    ezVSP Serial to Network Virtual Driver for Windows
    ezTerm Simple TCP/IP Communication Test Tool

    Dimension
    Size 437mm x 240mm x 44mm

    Operating Environment
    Input Voltage AC 85V ~ 264V
    Power Consumption 7W
    Operating Temperature 0℃ ~ +60℃
    Storage Temperature -20℃ ~ +70℃
    Certificate
    KC Registration(KN 22, KN 24)
